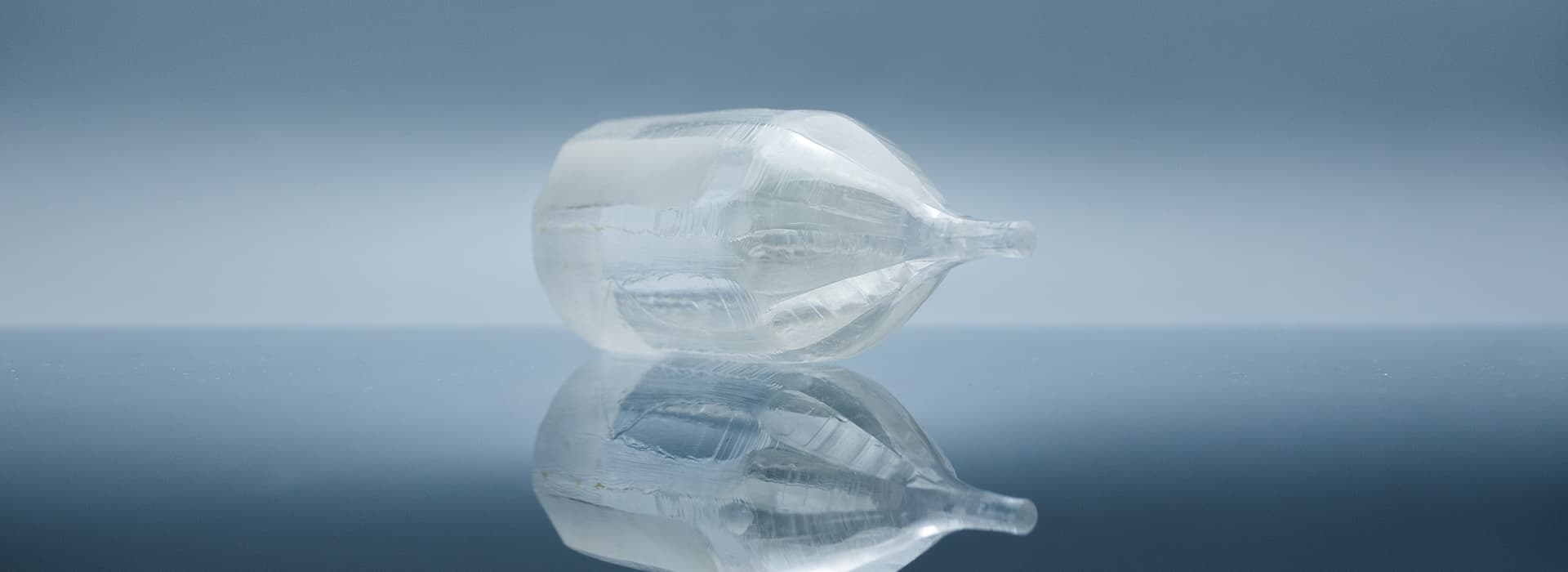

YAG

Undoped Yttrium Aluminium Garnet (Y3Al5O12 or YAG) is a new substrate and optical material that can be used for both UV and IR optics. It is particularly useful for high-temperature and high-energy applications. The mechanical and chemical stability of YAG is similar to that of Sapphire, but YAG is not birefringent. This particular feature is extremely important for some optical applications

Ask for a test Sample FREE

Parameter

Material and Specifications

Property	Value
Chemical formula	Y₃Al₅O₁₂
Crystal structure	Cubic
Lattice parameters	a = 11.9538Å
Density	4.55 g/cm3
Melting Point	1950°C
Refractive Index (λ=550nm)	1.84
Thermal Conductivity at 25℃ / (W·m-1·K-1)	0.14
Thermal Expansion/ (10-6 ℃)	6.9
Specific Heat at 300K/ (J·g-1·K-1)	590
Hardness (Mohs)	8-8.5
Young`s Modulus /GPa	279.9
Shear Modulus / GPa	113.8
Reflection loss	16.7%@1.06um
Poisson Ratio	n/a
Solubility	Insoluble

Polishing Specification for Optical Grade Ⅰ

Surface flatness	<λ /8@632nm
Clear aperture	>90%
Orentation tolerance	<0.5˚
Parallel	30˝
Perpendicular	15΄
Surface quality	10/5 (Scratch/Dig)
Chamfer	<0.2ⅹ45˚
Wavefront distorsion	<λ /4@632nm
Thickness/Aperture tolerance	±0.1mm

Polishing Specification for Optical Grade Ⅱ

Surface flatness	<λ /10@632nm
Clear aperture	>90%
Orentation tolerance	<0.2˚
Parallel	10˝
Perpendicular	5΄
Surface quality	10/5 (Scratch/Dig)
Chamfer	<0.2ⅹ45˚
Wavefront distorsion	<λ /8@632nm
Thickness/Aperture tolerance	±0.021mm
